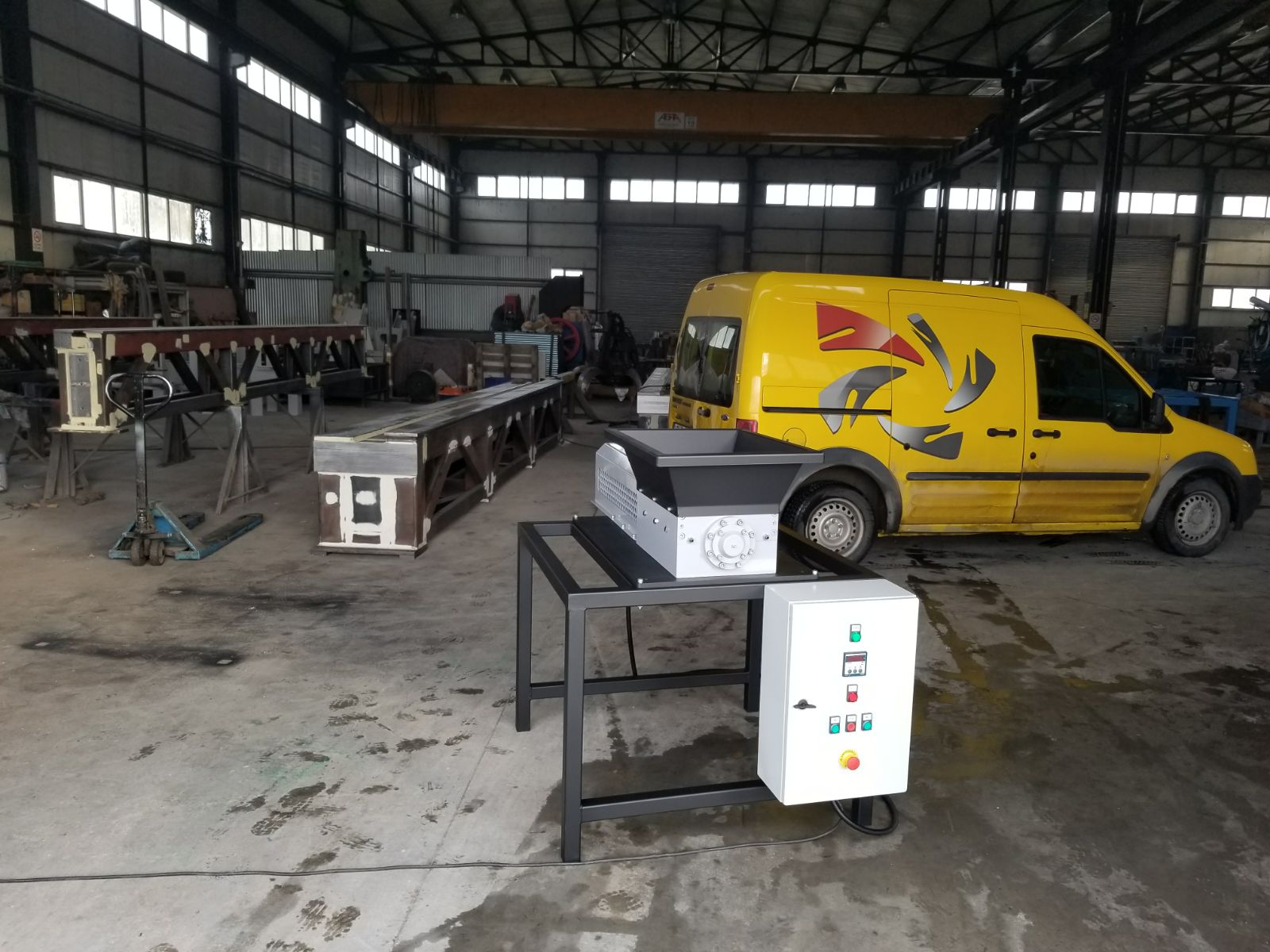

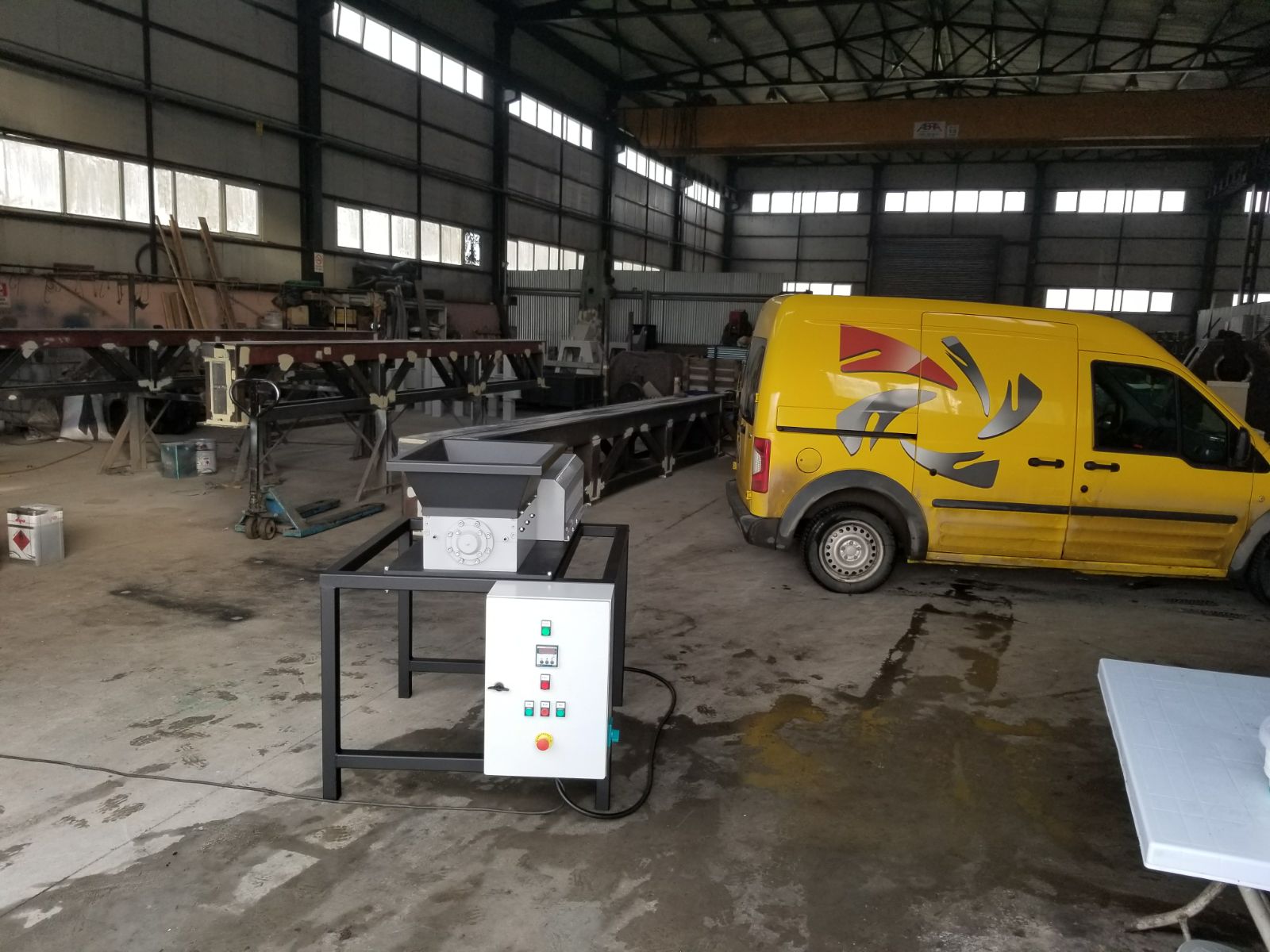

SSS1 – Iron Chips Shredder – Single Shaft Shredder

The present shredder for iron chips is designed and produced for to be mounted under the CNC machine iron chips exit conveyor.

• Model / type: SSS1 – Single shaft shredder
• Machine dimension: 1380 x 900 x 1320 mm (LxWxH)
• Shredding chamber dimensions: 275 x 420 mm
• Cutting force: 460 NW (on cutting diameter: 130mm )
• Weight: 340 Kg roughly
• Engine: 5.5 KW – three phases 50 / 60 Hz
• Output size: 1 up to 25 mm / steel
• Capacity/capacitate:     250 Kg / H
• Process time: app. 68 rounds per min
• All electric and electronic materials will be from Simens / Telemecanique Brand
• Oil lubrication: manual
• Screen material: Hardox 450
• Contra fix blades: Hardox 500

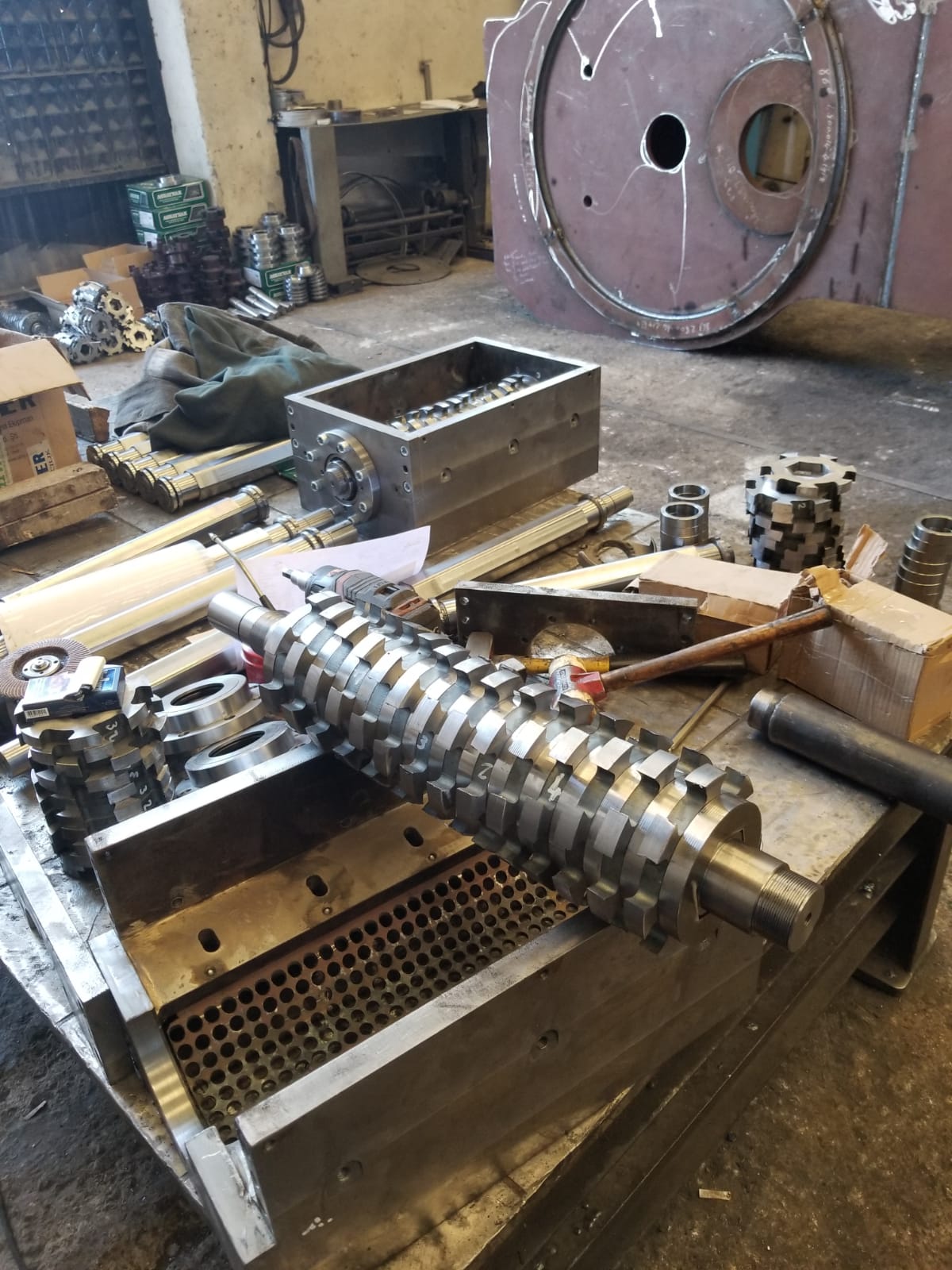

• Blades: 14 pcs from Hardox 500

For technical price offer and details please contact us
