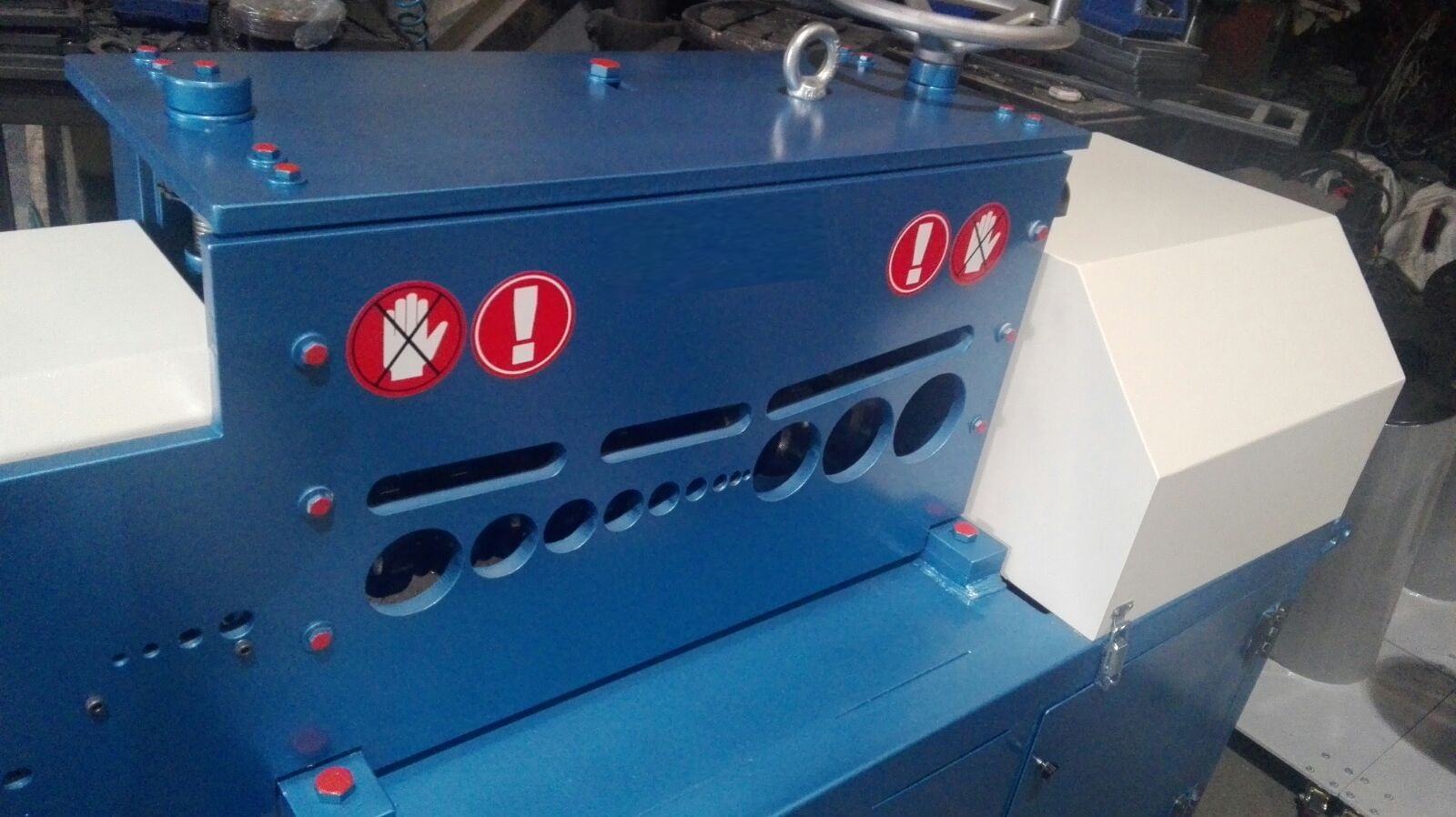

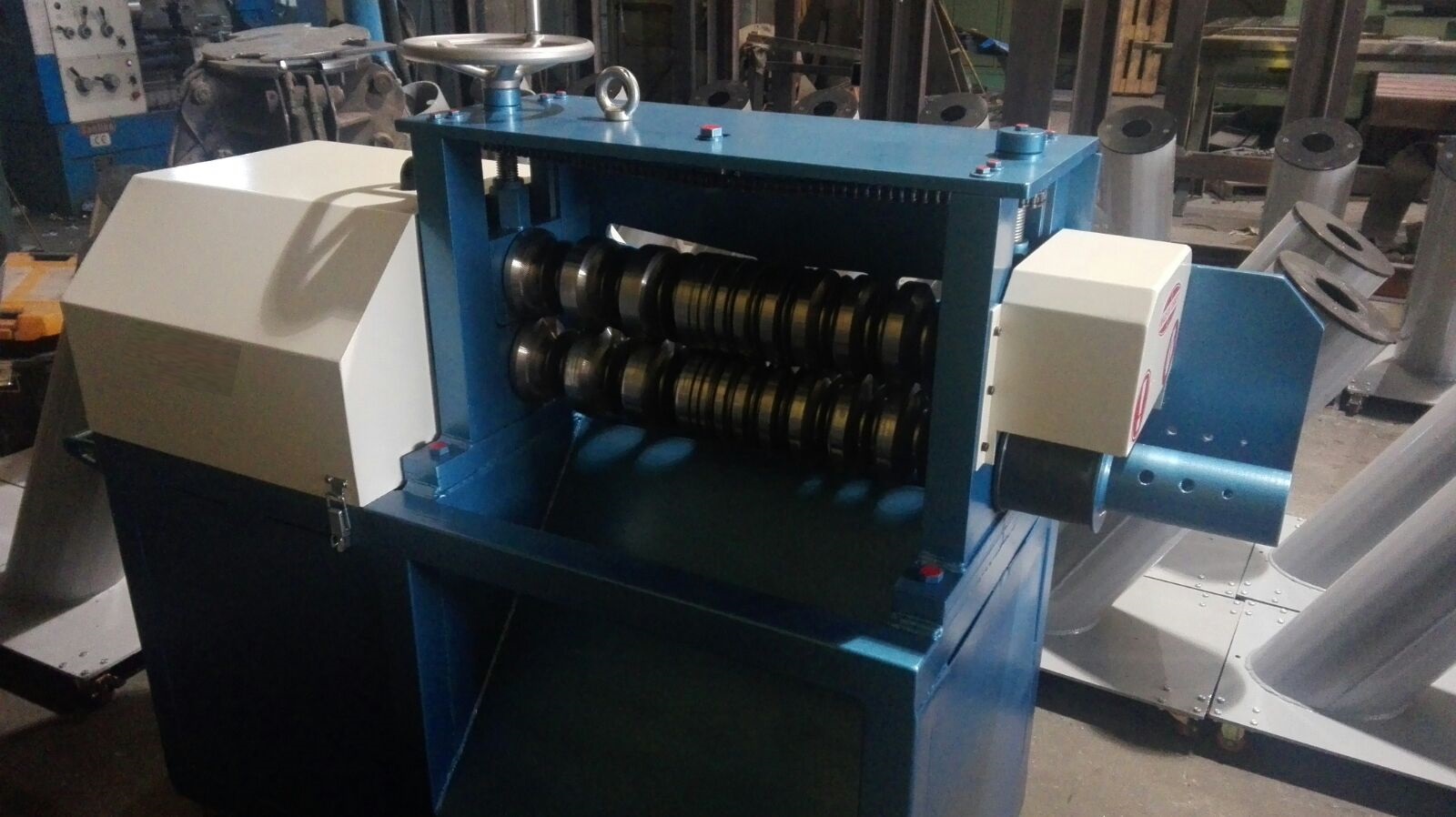

CSM 5-88 Cable stripping machine – New Design

For details, information, price offers and orders please contact us.

Technical details for standard cables stripping machine:

  • Model / type: CSM 5-88
  • Machine dimension (roughly): 1850x850x1500 mm
  • Weight (roughly): 450 Kg
  • Cables diameter range: 5 – 88 mm
  • Engine: 4 KW – 5.5 HP
  • Electricity consumption: 1 kW / H
  • Gear box (kW-rpm): 110 ALS
  • Knifes: steel 4140 55 LOK 35 Hardness
  • Transmission: Double drive Idler Gear

ATTENTION: This machine it is not designed to strip:

  • armored / underground electrical cables
  • wires with silicon based wire covering
